PC Laptop Computer Charging Port Repair

If your laptop isn’t charging, the charging port might be loose, damaged, or completely broken. This is a common issue caused by wear and tear, a bent charger tip, tripping over the cable, or pushing the charger in too hard.

When the charging port is faulty, your laptop may not charge at all, charge only at certain angles, or randomly disconnect. You may also notice the charger feels loose, wiggles, or doesn’t sit properly. Check out the photos on this page to see how damaged ports look — and how we’ve fixed them.

To repair this, we’ll need to disassemble the laptop, remove the broken charging port, and install a new one. Some models have the charging port soldered to the motherboard, while others have a separate cable — either way, it’s a delicate job best handled by experienced technicians.

Pricing Breakdown

The cost of PC laptop charging port repair typically starts from $220 to $280, depending on your laptop’s model and how the charging port is integrated into the system.

Here’s how it breaks down:

• $220–$280 → For laptops where the charging port is a separate component (connected via cable or small daughterboard). These are easier to access and replace.
• $280+ and can cost $350 or $400 or more → For laptops with USB-C charging ports or slim, modern designs where the port is soldered directly onto the motherboard. These cases require board-level repair or micro-soldering, which increases the complexity and cost. Refer to our PC laptop motherboard repair for more information.

What affects the cost:

• Type of charging port – Barrel jack, magnetic, proprietary, or USB-C
• Whether the port is modular or soldered onto the motherboard
• Laptop model and design – Slim or ultrabook models require more work
• Potential damage to the motherboard around the port (e.g. from sparks or bending)

➡ Newer laptops with USB-C charging often require motherboard repair instead of a simple port swap.
➡ We always test your charger, battery, and internal connections before recommending a repair — so you’re not paying for a fix you don’t need.

Our Process

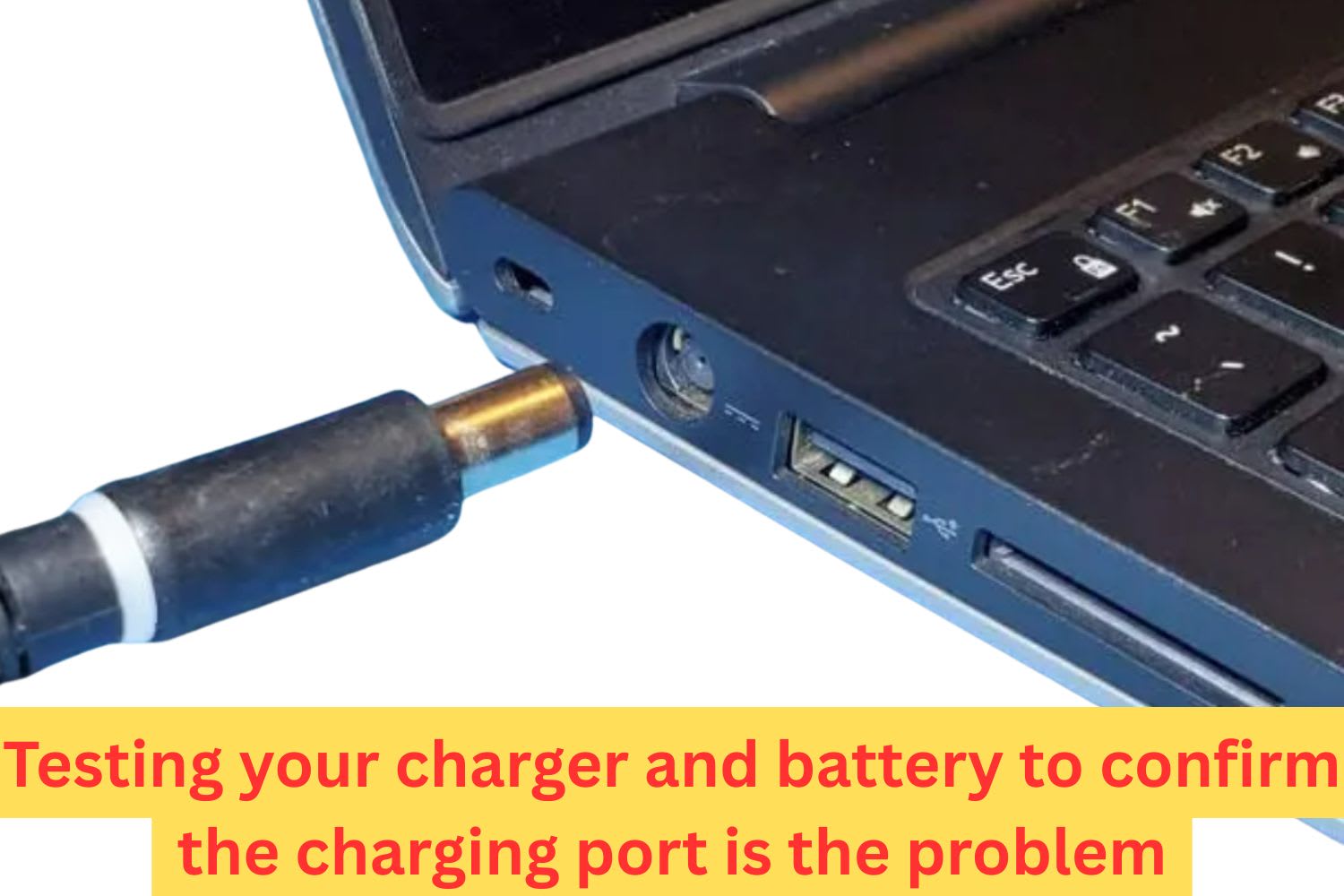

• We begin by testing the charger and battery to confirm the charging port is the issue.
• The laptop is carefully disassembled, and the internal battery is disconnected to ensure safe handling.
• Depending on the design:

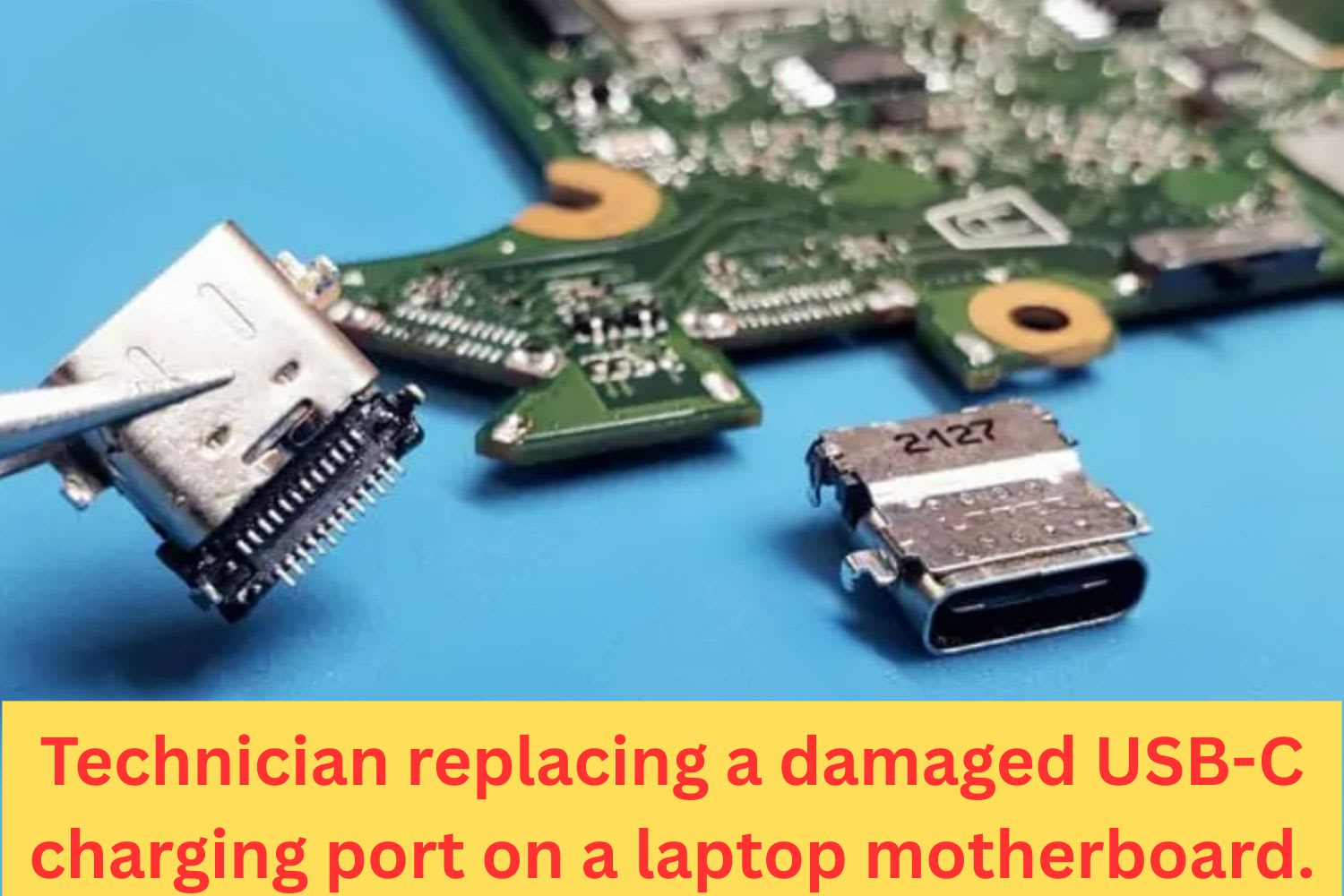

• For soldered ports, we desolder and remove the damaged port from the motherboard.
• For cable-connected ports, we replace the full charging cable assembly.
• A new charging port is installed and secured in place.
• We test the port with multiple chargers to confirm consistent charging and a firm connection.
• After successful repair, we reassemble the laptop and run final checks.

The Technical Stuff

Drives come in different types and sizes:

Charging ports come in different types depending on the laptop brand and model:

• Barrel-style DC jack – common in many traditional laptops
• USB-C port – found in most modern laptops; may support power delivery, data, or both
• Magnetic ports (e.g., Apple MagSafe) – require precision handling and specific parts
• Soldered ports – permanently attached to the motherboard
• Removable ports – connected by internal cable

Choosing the right replacement and making the repair properly is crucial. A poor-quality part or incorrect installation can cause shorts, charging failure, or damage to the board.

Charging port damage usually occur over time (1-6 months) and gradually get worse. If your computer has never had an issue with the charging port being loose or difficult to charge, then it suddenly stopped charging, it is unlikley that the charging port is the problem. In this case, it could be a motherboard issue instead. However, if your computer was dropped right on the charging port when the charger was still plugged in, then it is possible that the charging port was damaged.

Our Difference

We don’t just assume the charging port is the issue — we take time to test the battery, adapter, and charging circuit first. If the problem lies elsewhere (like the motherboard or battery), we’ll let you know before doing any work.

Our technicians have repaired thousands of laptop charging ports across all major brands. We know how to handle delicate soldering work, source high-quality replacement parts, and make sure the repair lasts.

We also partner with trusted suppliers to ensure all new ports meet original standards and come backed by warranty.

Let us help get your laptop charging again — reliably and safely!
